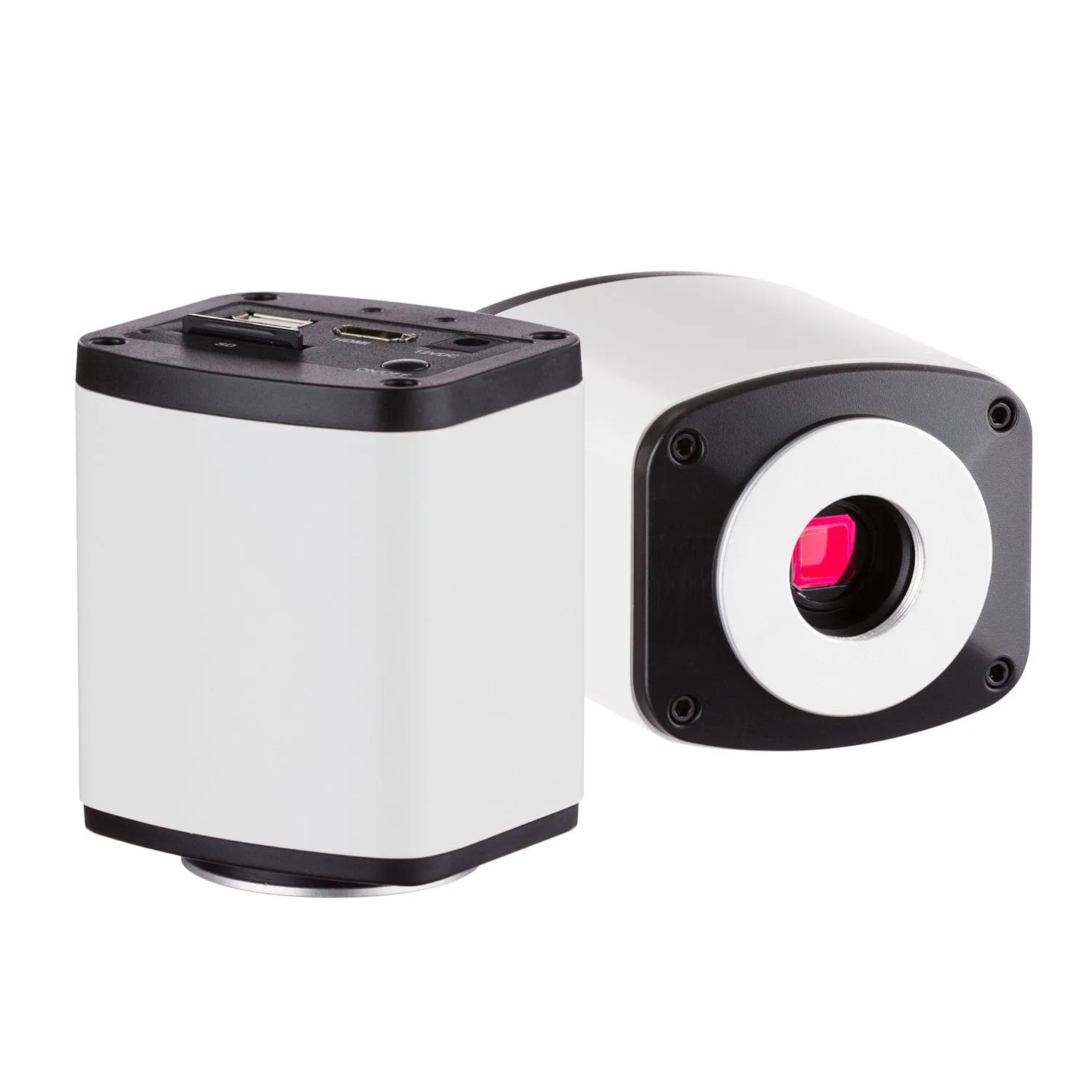

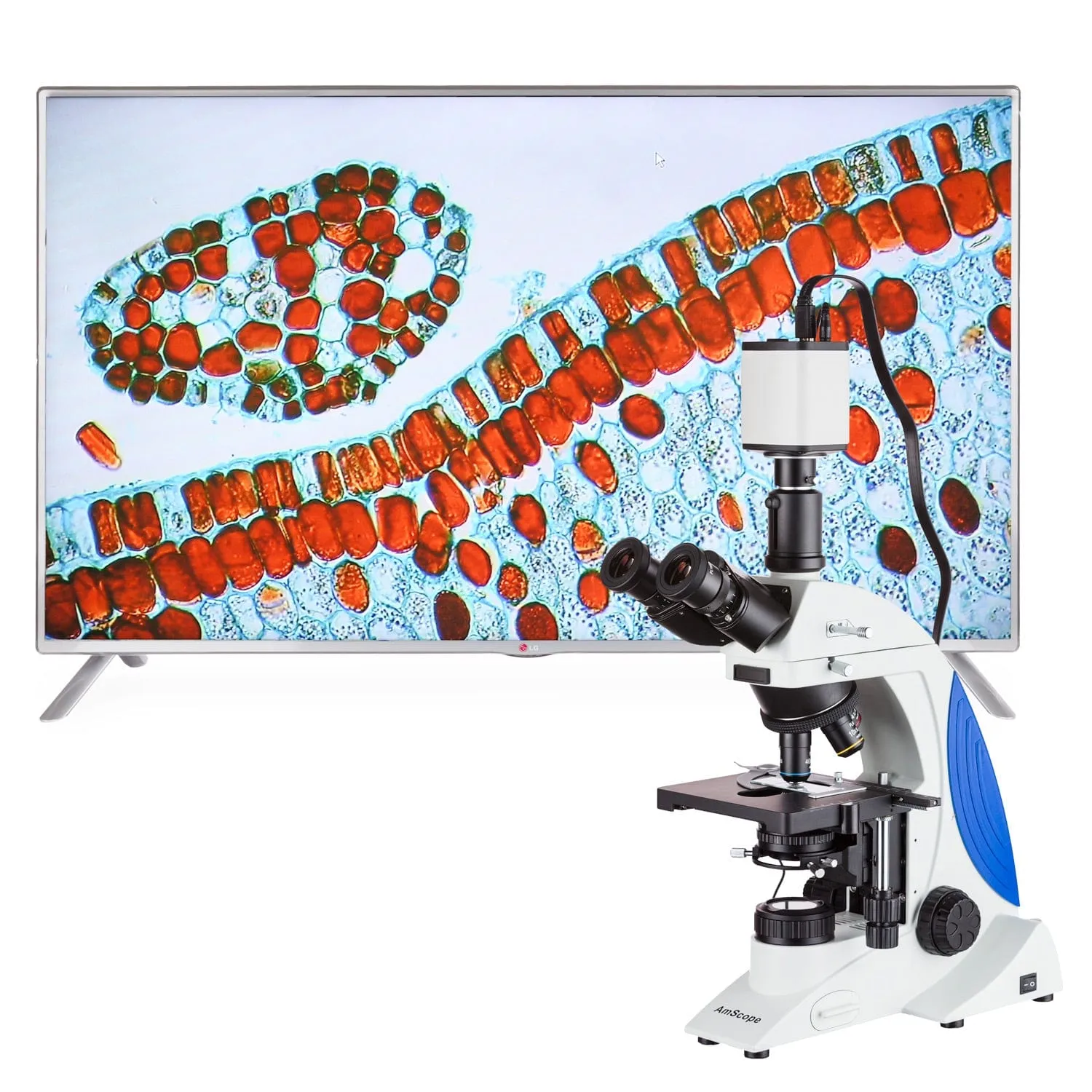

Our brand new 1920x1080, 15fps camera kit allows for live viewing and recording of your microscope image with ease. Record to an SD card, video devices via HDMI, or computer via USB 2.0. Now, viewing your microscope's image digitally has never been easier; simply connect the camera to any monitor via HDMI, and attach a USB mouse, and you're up and running with crystal clear images. On-screen adjustments can be easily made for exposure, saturation, brightness, contrast, tint, and noise reduction to provide you with the best image possible for any application. Compatible with stereo microscopes and compound microscopes, whether your needs are biological, industrial, gemological, or any other type of microscopy.
The standard C-mount connection allows the camera to be used with any number of optional lenses and C-mount photo ports. For 23mm drop-in photo-ports, a 0.5X reduction lens is recommended.
Specifications
| Sensor Specifications | |
| Model | MT9P031 (color) |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/2.5" |
| Active Pixels | 5.04M (2592 x 1944) |
| Pixel Size | 2.2µm x 2.2µm |
| Active Sensor Area | 5.7mm x 4.28mm |
| Shutter | electronic rolling shutter |
| Sensitivity | 1.4V/Lux-sec |
| Spectral Response | 380-650nm with IR-cut filter |
| Other Camera Specifications | |
| Video Preview Resolution (HDMI) | 1920 x 1080 |
| Video Preview Framerate (HDMI) | 15fps |
| Video Capture Resolution | 1920 x 1080 |
| Video Capture Framerate | 15fps |
| Photo Capture Resolution | 2592 x 1932 |
| Recording Media | SecureDigital card |
| Connectivity | HDMI, USB 2.0 |
| Lens-mount | C-mount |
| Compensating Lens | 0.45X (optional) |
| Power | 12VDC 2A |
| Dimensions | 74.4mm x 67.2mm x 90.9mm |
| Operating Temperature | 0-60°C |
| Operating Humidity | 45-85%RH |
Packing List :
