ProductDescription
-
Key Features
-
16-channel SMD Plus for analog channels or 24-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
-
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
-
2-channel face recognition for analog channels which supports face comparison
-
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
-
Supports up to 24-channel IP camera input and each channel can be up to 6 MP
-
The incoming bandwidth reaches 128 Mbps
-
Smart H.265 and H.265 dual-stream video compression
-
IoT and POS capabilities
-
Series Overview
-

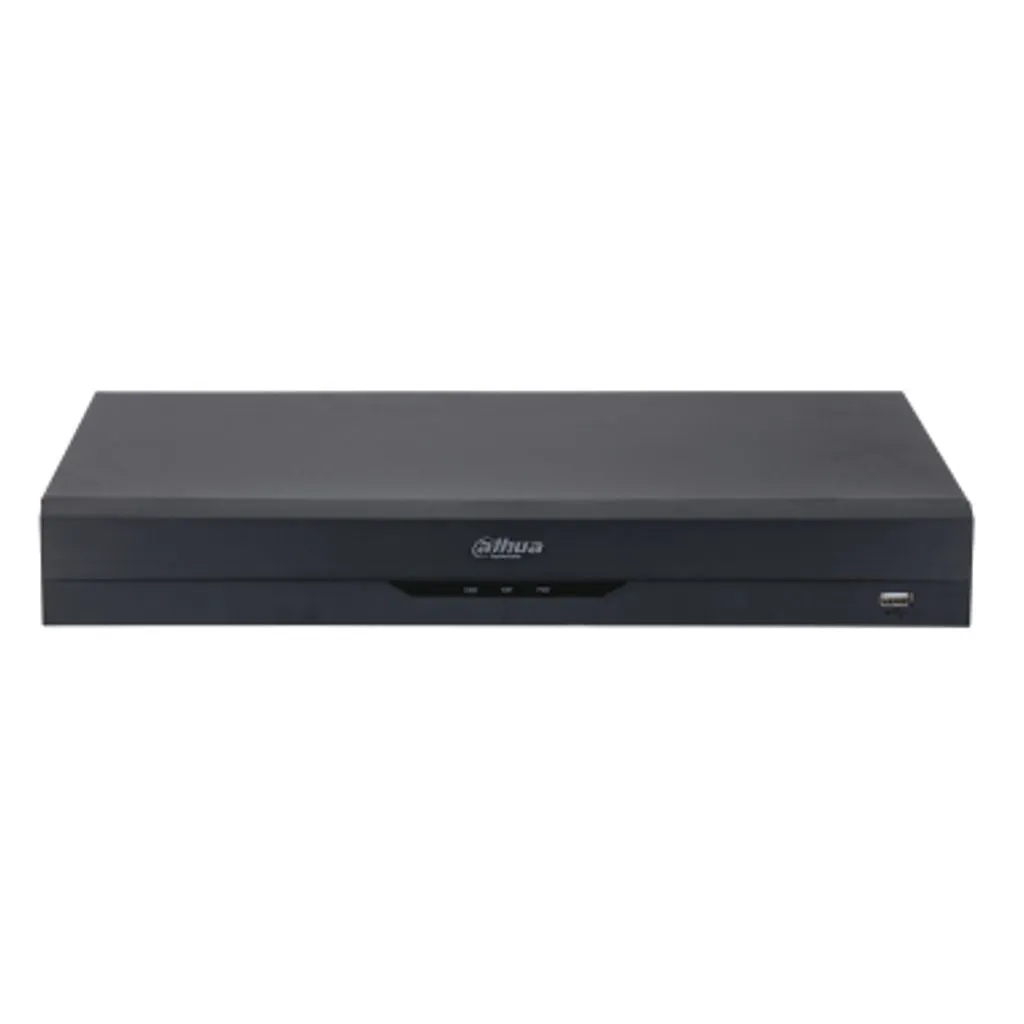

Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model
-
Please refer to the specifications below for information on the number of channels)
-
This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to
raise the security level of various indoor and outdoor facilities -
Functions
-
Face Recognition
-
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database
-
Perimeter Protection
-
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc
-
Enables system to act secondary recognition for the targets
-
Improves alarm accuracy
-
SMD Plus
-
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm
-
AI Coding-ABR
-
Compared with H.265, AI coding-ABR can save 50% on storage costs, and save bit rate for complex scenes, which can prioritize image quality in dynamic scenes
-
Irregular Black Block Masking
-
Dahua's black block masking function supports the use of irregular shapes for masking, ensuring privacy in public and private locations
ProductSpecification
| Brand | Dahua |
| Product Type | DVR |
| Product Model | DH-XVR5216AN-I3 |
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Perimeter Protection | |
| Perimeter Performance AI By Recorder (Number Of Channels) | Advanced Mode: 2 channels, 10 IVS rules for each channel General Mode: 4 channels, 10 IVS rules for each channel |
| Face Detection | |
| Face Attributes | 6 Attributes |
| Face Detection Performance Of AI By Recorder (Number Of Channels) | 2 Channel(up to 12 face images/s each channel) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 10,000 images. |
| Face Recognition Performance Of AI by Recorder (Number Of Channels) | 2 Channel |
| SMD Plus | |
| SMD Plus By Recorder | 16 Channel Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus By Camera | 24 Channel |
| AI Video Quality Analytics | |
| AI Video Quality Analytics By Recorder
| 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white |
| Scene Changing | |
| Scene Changing By Recorder | 1 Channel |
| Irregular Black Block Masking | |
| Irregular Black Block Masking By Recorder | 1 Channel |
| Audio And Video | |
| Analog Camera Input | 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input | Up to 24 channels of IPC access 8 IP channels by default 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection cannot be used |
| Encoding Capacity | Main stream:
$
87.49
$
67.30
$
54.95
$
86.41
$
66.47
$
55.03
$
42.33
$
16.99
$
61.88
$
47.60
$
59.95
$
83.86
$
64.51
$
69.80
$
73.79
$
56.76
$
64.43
$
49.56
|
