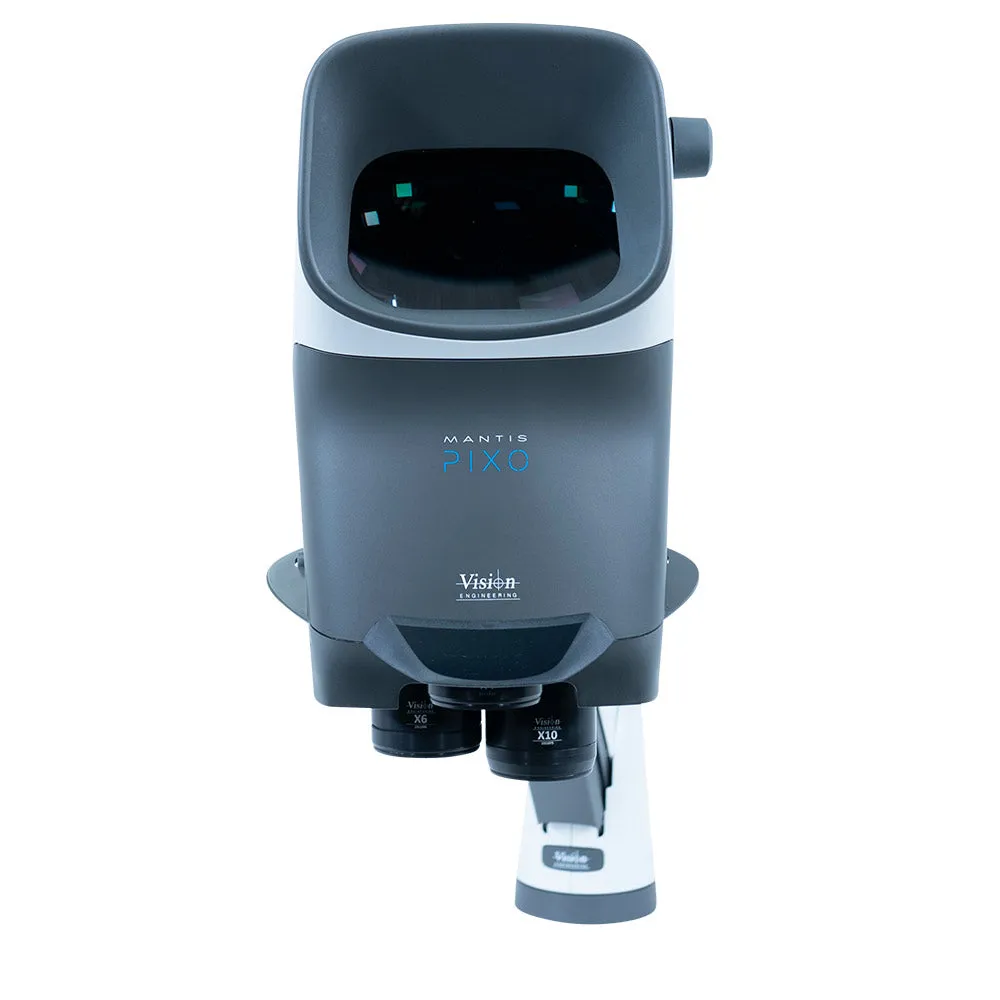

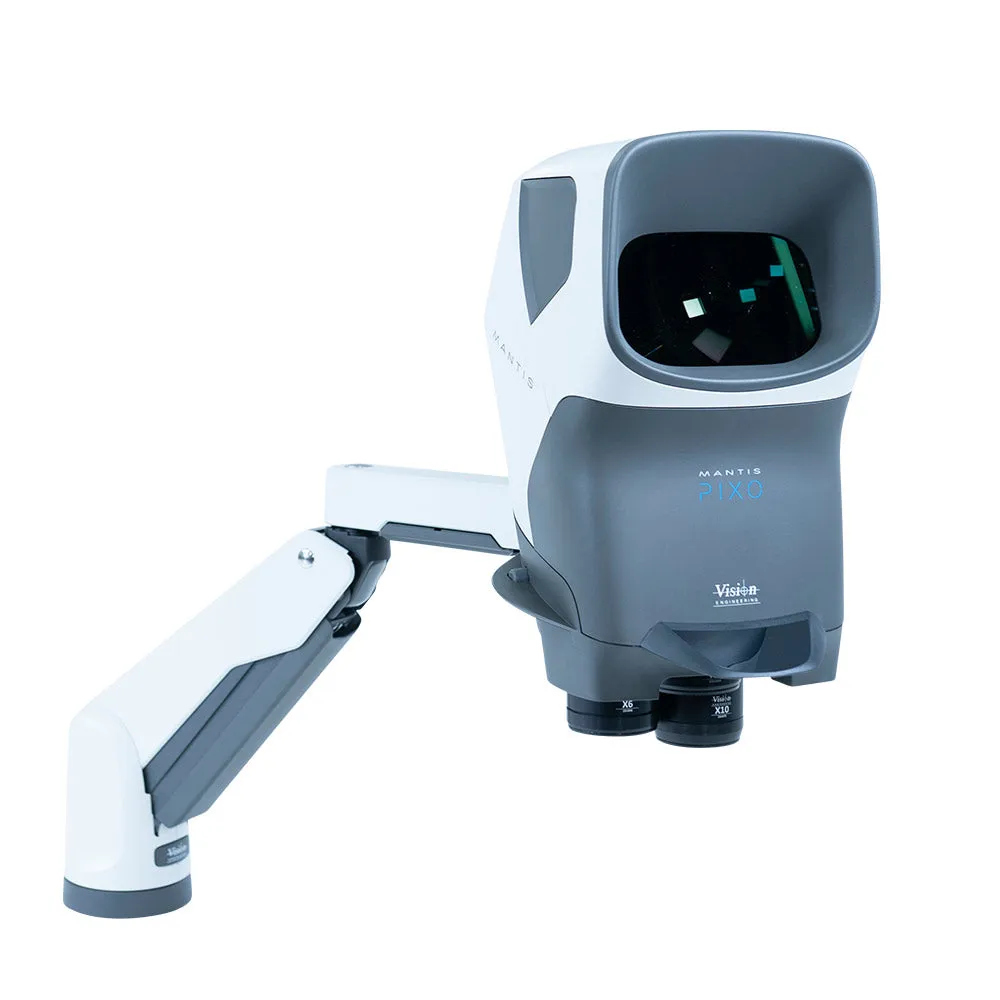

MPH001 Mantis PIXO Stereo Microscope with Integrated HD Camera (Head Unit)
MTB200 Mantis Microscope Stand, Verso Arm
Eyepiece-less optical stereo microscope with integrated digital camera and dynamic view optics.Features:
- High quality optical stereo image
- Ergonomic working position
- Long working distance
- Integrated high-definition camera
- Video and image capture
- On screen annotation
- Custom overlays
- Magnification 3.0x - 15x
- 3 Lens multi-view turret
- Dynamic 3D lighting
- White/UV lighting option
With a magnification range of 3x to 15x, superior image quality and long working distance, the Mantis ERGO is the perfect stereo inspection tool for a wide-range of applications.
PIXO seamlessly integrates optical and digital technologies, resulting in a harmonious blend of the visual depth provided by optical stereo view and the exceptional image quality delivered by a high-resolution camera. With PIXO, you can augment your visuals by adding text, shapes, arrows, or digital overlays. Additionally, you can compare real-time images with targets, measurements, or pre-set guides.

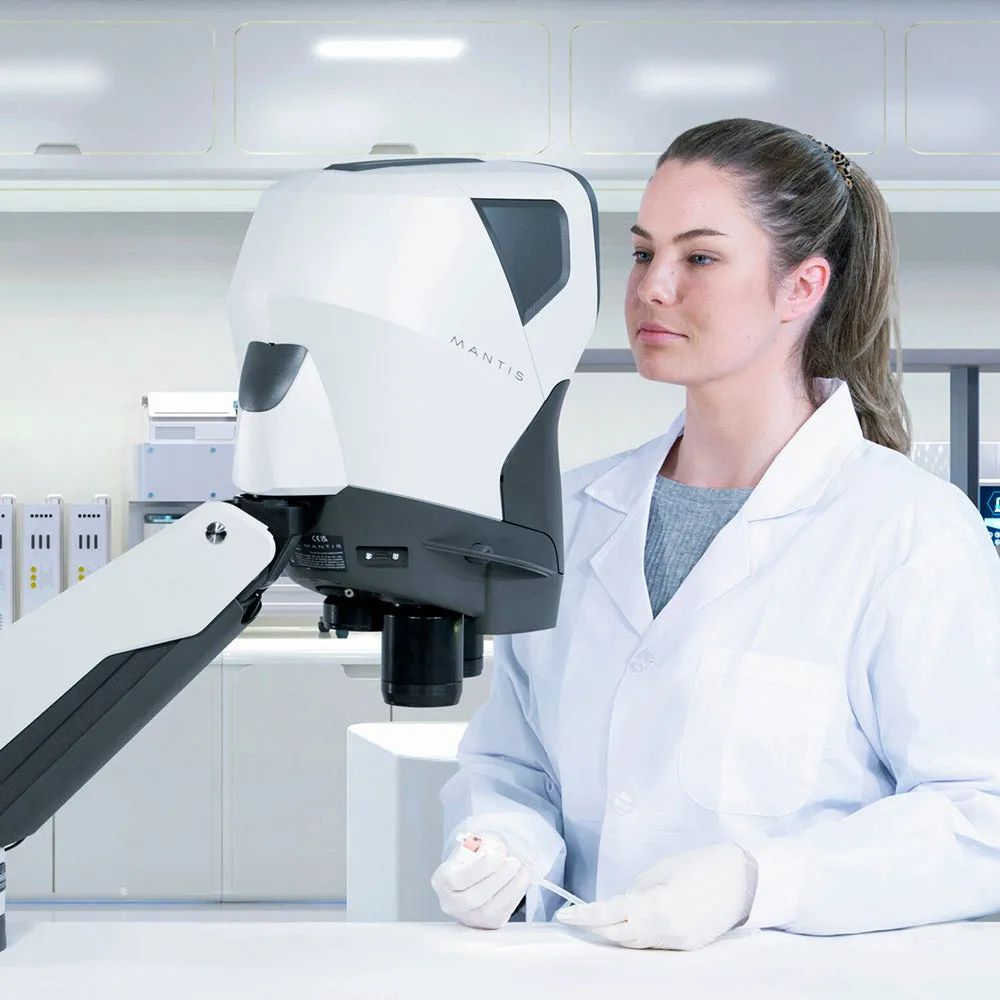

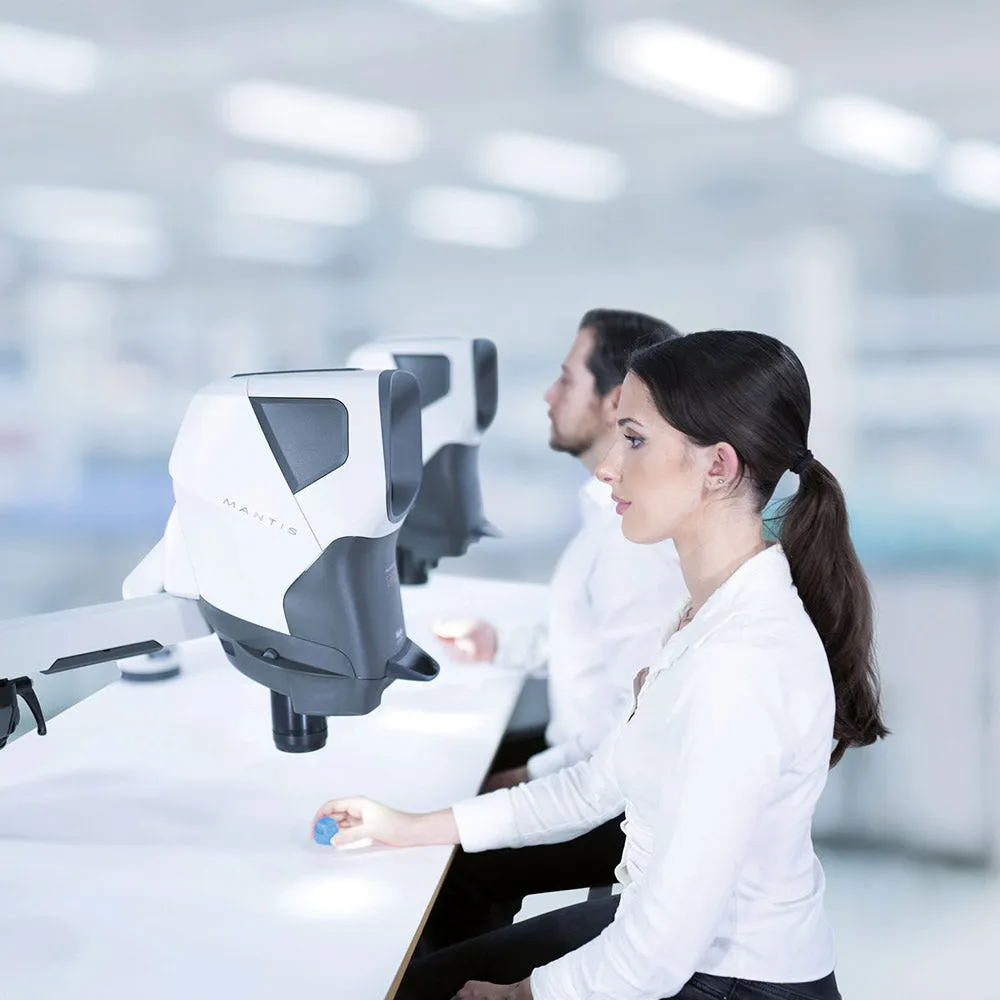

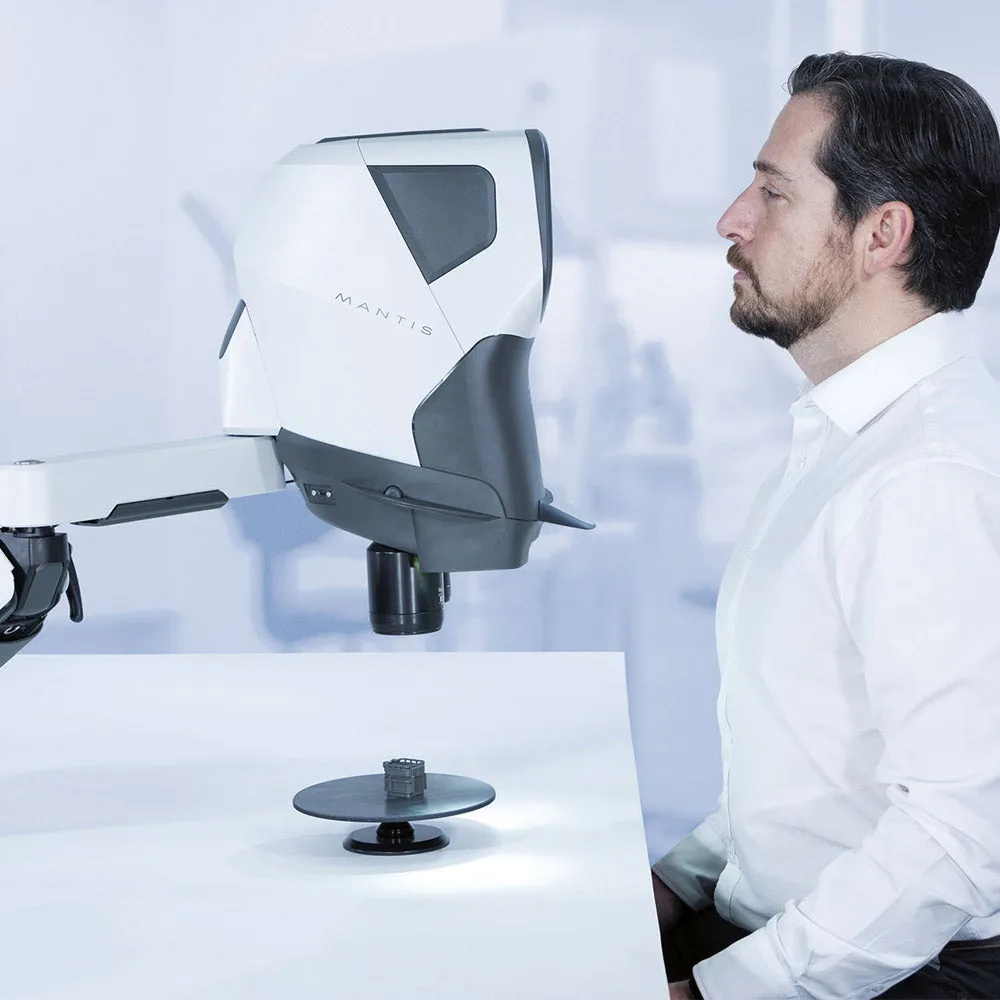

The large image allows for faster inspection, and improved accuracy, and the ergonomics of Mantis provide a more comfortable working experience, maximizing eye comfort, and improving hand-eye coordination.

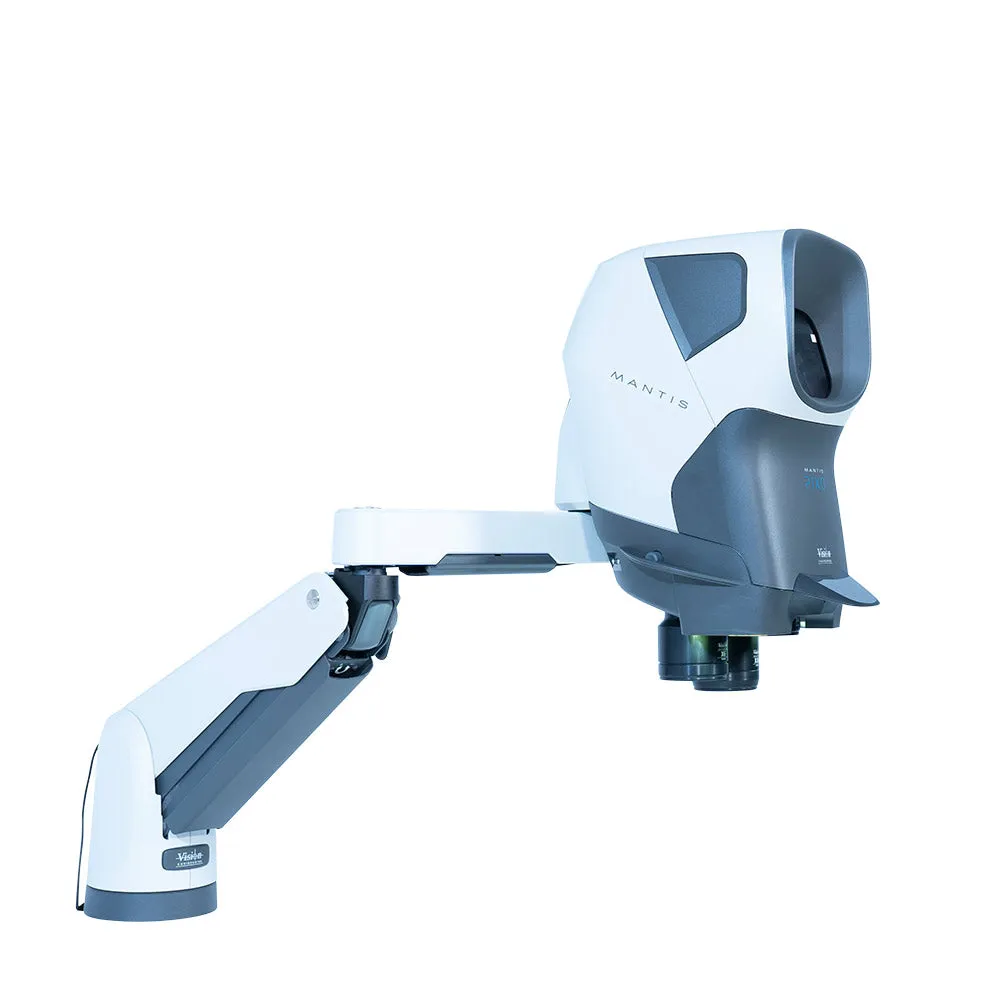

Verso arm microscope stand, compatible with Vision Engineering Mantis 3rd Generation microscopes (ERGO, PIXO, AND IOTA)
Mantis is made in the USA at our manufacturing facility in Connecticut.
Specifications
-
Size (Head only)
-
Depth: 275mm
-
Width: 218mm
-
Height: 371mm
-
-
Camera
-
Camera resolution: 5.04MP
-
Best capture resolution: 2592 x 1944 Pixels
-
Frame refresh rate: 48 frames per second
-
Sensor type: Rear-illuminated CMOS
-
Colour depth: 12-bit
-
Interface: SuperSpeed USB 3.0
-
Output connection: USB-C to PC
-
Supplied software: ViCapture
-
Image capture formats: PNG, BMP, JPG
-
Saved image sizes: PNG - 19Mb, BMP - 19Mb, JPG - 400Kb
-
-
Weight
-
Max. operating: 6.5kg
-
Head only: 4.5kg
-
